RTB懸臂式熱熔膠涂布機
主要特點:
1. 采用懸臂機架結婚,方便材料的裝卸。
2. 涂布寬度可放大到400mm,是一臺標準的一人操作的理想設備。
應用范圍:RTB懸臂式熱熔膠涂布機適用于生產美紋紙膠帶,鋁箔膠帶、醫用敷料膠帶、不干膠商標等。

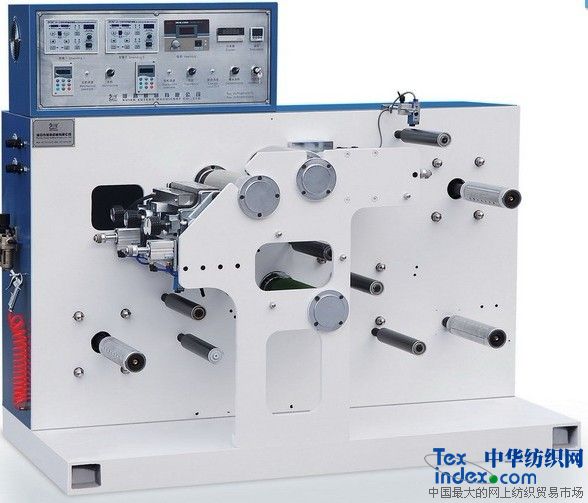

RTB Cantilever Type Hot Melt Coating Machine
Applied Range:
Main characteristic
RTB Cantilever Type Hot Melt Coating Machine adopts Cantilever Type structure for loading and unloading the material easily and can coat the material up to a width of 400mm. so it is standard and ideal equipment for one-person operation. If it is equipped with the tension controller of magnetic powder, you can obtain high production efficiency.
Technical parameters
Model |
RTB |
Max. Coating width |
50-400mm |
Coating Weight |
15-200g/m2 |
Max working speed |
50m/min |
Unwinding Diameter |
450mm |
Rewinding Diameter |
450mm |
Unwinding device |
2 sets |
Rewinding device |
1 set |
Correction Edge Device |
2 sets |
Length |
1850mm |
Height |
1650mm |
